ZASTAVA 9A

Engine technical data
Technical data			Valve control			Timing control
Manufacturer			Engine type		Straight	Compression
Engine code		9A	Fuel type		Petrol	Bore ^mm		65
Power ^kw/hp		33/45	Fuel mixture formation		Intake Manifold Injection/ Carburettor	Stroke ^mm		68
Engine volume ^cm³		903	Charging			Crankshaft bearing
Cylinders		4	Engine block type			Cooling		water-cooled
Valves		8	Cylinder head type		OHV

Technical data
Manufacturer
Engine code 9A
Power ^kw/hp 33/45
Engine volume ^cm³ 903
Cylinders 4
Valves 8
Valve control
Engine type Straight
Fuel type Petrol
Fuel mixture formation Intake Manifold Injection/ Carburettor
Charging
Engine block type
Cylinder head type OHV
Timing control
Compression
Bore ^mm 65
Stroke ^mm 68
Crankshaft bearing
Cooling water-cooled

Vehicles

ZASTAVA YUGO 0.9

Found 27 products:

Seal Set, valve stem - 825.042 ELRING

Valve Stem Seal

Seal Set, valve stem - 825.042 ELRING

Brand: ELRING

Part Number: 825.042

|

Valve Stem Diameter [mm]: 7
Material: FPM (fluoride rubber)
EAN: 4041248054475

Seal Ring, valve stem - 701.289 ELRING

Valve Stem Seal

Seal Ring, valve stem - 701.289 ELRING

Brand: ELRING

Part Number: 701.289

|

Valve Stem Diameter [mm]: 7
Outer Diameter [mm]: 13.2
Height [mm]: 10

Conrod Bearing Set - 029 PS 18146 000 MAHLE

Connecting Rod Bearing Shell

Conrod Bearing Set - 029 PS 18146 000 MAHLE

Brand: MAHLE

Part Number: 029 PS 18146 000

|

For housing diameter from [mm]: 50.6
To housing diameter [mm]: 50.612
To bearing clearance [mm]: 0.052

Premium

Bush, rocker arm - 029 LB 18192 000 MAHLE

Rocker Arm/Finger Follower

Bush, rocker arm - 029 LB 18192 000 MAHLE

Brand: MAHLE

Part Number: 029 LB 18192 000

|

To wall thickness [mm]: 1.77
To housing diameter [mm]: 45.025
To shaft diameter [mm]: 41.975

Premium

Shaft Seal, crankshaft - 440.780 ELRING

Radial Oil Seal/Set

Shaft Seal, crankshaft - 440.780 ELRING

Brand: ELRING

Part Number: 440.780

|

Outer Diameter [mm]: 80
Height [mm]: 8
Inner Diameter [mm]: 64

Thrust Washer, crankshaft - 029 AS 18668 000 MAHLE

Thrust Washers/Thrust Bearing

Thrust Washer, crankshaft - 029 AS 18668 000 MAHLE

Brand: MAHLE

Part Number: 029 AS 18668 000

|

To wall thickness [mm]: 1.97
For housing diameter from [mm]: 72.92
To housing diameter [mm]: 73.2

Premium

Gasket, exhaust manifold - 480.650 ELRING

Exhaust Manifold Gasket/seal ring

Gasket, exhaust manifold - 480.650 ELRING

Brand: ELRING

Part Number: 480.650

|

Fitting Position: Cylinder Head
EAN: 4041248511893

Gasket, cylinder head cover - 154.016 ELRING

Cylinder Head Cover Gasket

Gasket, cylinder head cover - 154.016 ELRING

Brand: ELRING

Part Number: 154.016

|

EAN: 4041248110720

Crankshaft Bearing Set - 029 HS 18067 000 MAHLE

Crankshaft Main Bearings

Crankshaft Bearing Set - 029 HS 18067 000 MAHLE

Brand: MAHLE

Part Number: 029 HS 18067 000

|

To wall thickness [mm]: 2.502
To housing diameter [mm]: 59.019
To shaft diameter [mm]: 53.978

Premium

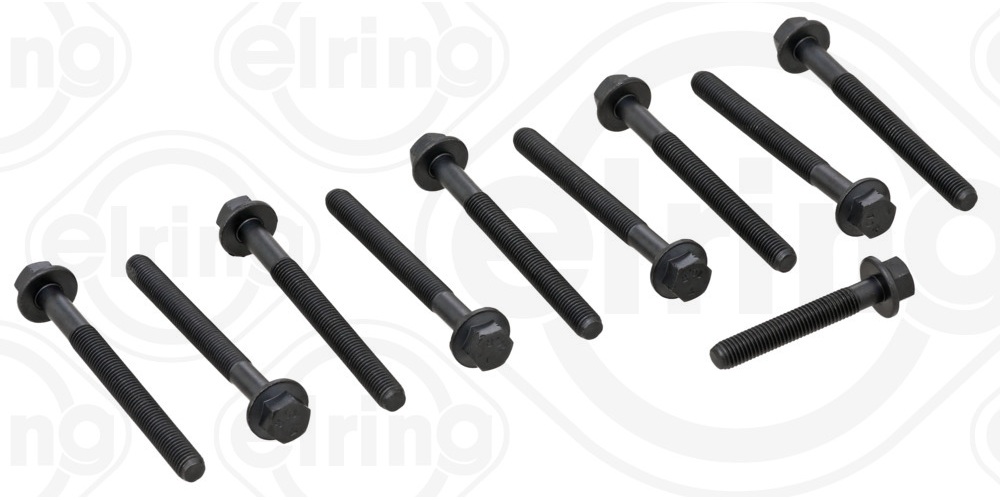

Bolt Kit, cylinder head - 148.110 ELRING

Cylinder Head Bolts

Bolt Kit, cylinder head - 148.110 ELRING

Brand: ELRING

Part Number: 148.110

|

Spanner Size: 13 mm
Bolt Head-/Nut Design: Male Hex
Thread Size 2: M 9x1,25x91

Conrod Bearing Set - 029 PS 18146 025 MAHLE

Connecting Rod Bearing Shell

Conrod Bearing Set - 029 PS 18146 025 MAHLE

Brand: MAHLE

Part Number: 029 PS 18146 025

|

Oversize [mm]: 0.25
To housing diameter [mm]: 50.612
To shaft diameter [mm]: 47.778

Premium

Big End Bearings - 01-4139/4 STD GLYCO

Connecting Rod Bearing Shell

Big End Bearings - 01-4139/4 STD GLYCO

Brand: GLYCO

Part Number: 01-4139/4 STD

|

Component Number: 3025RA
EAN: 4044197422180

Gasket Set, oil sump - 918.024 ELRING

Oil Sump Gasket

Gasket Set, oil sump - 918.024 ELRING

Brand: ELRING

Part Number: 918.024

|

EAN: 4041248061008

Gasket, cylinder head - 144.420 ELRING

Cylinder Head Gasket

Gasket, cylinder head - 144.420 ELRING

Brand: ELRING

Part Number: 144.420

|

Additionally required articles (article numbers): 760.72
Diameter [mm]: 66
Thickness [mm]: 1.74

Piston Ring Kit - 2N4144 HASTINGS PISTON RING

Piston Ring Set

Piston Ring Kit - 2N4144 HASTINGS PISTON RING

Brand: HASTINGS PISTON RING

Part Number: 2N4144

|

Number of Cylinders: 1
Cylinder Bore [inch]: 3.248
Component Number: 1. 322 1,20mm N, 2. 406 1,50mm P, 3. 248 2,00mm Cr

Big End Bearings - 01-4139/4 0.25MM GLYCO

Connecting Rod Bearing Shell

Big End Bearings - 01-4139/4 0.25MM GLYCO

Brand: GLYCO

Part Number: 01-4139/4 0.25mm

|

Oversize [mm]: 0.25
Component Number: 3025RA
EAN: 4044197422166

Thrust Washer, crankshaft - 029 AS 18668 025 MAHLE

Thrust Washers/Thrust Bearing

Thrust Washer, crankshaft - 029 AS 18668 025 MAHLE

Brand: MAHLE

Part Number: 029 AS 18668 025

|

To wall thickness [mm]: 2.22
For housing diameter from [mm]: 72.92
Oversize [mm]: 0.25

Premium

Crankshaft Bearings - H1039/3 0.25MM GLYCO

Crankshaft Main Bearings

Crankshaft Bearings - H1039/3 0.25MM GLYCO

Brand: GLYCO

Part Number: H1039/3 0.25mm

|

Oversize [mm]: 0.25
Position/Degree: 1.3, 2
Component Number: 62006RA, 62007RA

Crankshaft Bearings - H1039/3 STD GLYCO

Crankshaft Main Bearings

Crankshaft Bearings - H1039/3 STD GLYCO

Brand: GLYCO

Part Number: H1039/3 STD

|

Position/Degree: 1.3, 2
Component Number: 62006RA, 62007RA
EAN: 4044197431298

Gasket, cylinder head - 985.880 ELRING

Cylinder Head Gasket

Gasket, cylinder head - 985.880 ELRING

Brand: ELRING

Part Number: 985.880

|

Diameter [mm]: 66
Thickness [mm]: 1.12
EAN: 4041248063521

Thrust Washer, crankshaft - A182/2 STD GLYCO

Thrust Washers/Thrust Bearing

Thrust Washer, crankshaft - A182/2 STD GLYCO

Brand: GLYCO

Part Number: A182/2 STD

|

Component Number: 2897AFF
EAN: 4044197429561

Gasket Set, oil sump - HC027 PAYEN

Oil Sump Gasket

Gasket Set, oil sump - HC027 PAYEN

Brand: PAYEN

Part Number: HC027

|

EAN:

Piston Ring Kit - 2N4639 HASTINGS PISTON RING

Piston Ring Set

Piston Ring Kit - 2N4639 HASTINGS PISTON RING

Brand: HASTINGS PISTON RING

Part Number: 2N4639

|

Number of Cylinders: 4
Cylinder Bore [inch]: 3.248
Component Number: 1. 322 1,20mm N, 2. 406 1,50mm P, 3. 987 2,00mm N

Crankshaft Bearing Set - 029 HS 18067 025 MAHLE

Crankshaft Main Bearings

Crankshaft Bearing Set - 029 HS 18067 025 MAHLE

Brand: MAHLE

Part Number: 029 HS 18067 025

|

To wall thickness [mm]: 2.627
Oversize [mm]: 0.25
To housing diameter [mm]: 59.019

Premium

Crankshaft Bearing Set - 029 HS 18067 050 MAHLE

Crankshaft Main Bearings

Crankshaft Bearing Set - 029 HS 18067 050 MAHLE

Brand: MAHLE

Part Number: 029 HS 18067 050

|

To wall thickness [mm]: 2.752
For housing diameter from [mm]: 59
Oversize [mm]: 0.5

Premium

Piston Ring Kit - 2C4639 HASTINGS PISTON RING

Piston Ring Set

Piston Ring Kit - 2C4639 HASTINGS PISTON RING

Brand: HASTINGS PISTON RING

Part Number: 2C4639

|

Number of Cylinders: 4
Cylinder Bore [mm]: 82.5
Cylinder Bore [inch]: 3.248

Gasket, thermostat - 480.510 ELRING

Seal

Gasket, thermostat - 480.510 ELRING

Brand: ELRING

Part Number: 480.510

|

Number of mounting bores: 2
Gasket Design: Soft Material Gasket
EAN: 4041248967492
