SUBARU EZ30

Engine technical data
Technical data		Valve control		Timing control	Timing Chain
Manufacturer		Engine type	BOXER	Compression
Engine code	EZ30	Fuel type	Petrol	Bore ^mm	89.2
Power ^kw/hp	154/209	Fuel mixture formation	Intake Manifold Injection/ Carburettor	Stroke ^mm	80
Engine volume ^cm³	3000	Charging		Crankshaft bearing
Cylinders	6	Engine block type		Cooling	water-cooled
Valves	24	Cylinder head type	DOHC

Technical data
Manufacturer
Engine code EZ30
Power ^kw/hp 154/209
Engine volume ^cm³ 3000
Cylinders 6
Valves 24
Valve control
Engine type BOXER
Fuel type Petrol
Fuel mixture formation Intake Manifold Injection/ Carburettor
Charging
Engine block type
Cylinder head type DOHC
Timing control Timing Chain
Compression
Bore ^mm 89.2
Stroke ^mm 80
Crankshaft bearing
Cooling water-cooled

Vehicles

SUBARU LEGACY III Estate (BH) 3.0 H6 AWD (BHE) SUBARU LEGACY IV (BL) 3.0 R AWD (BLE, B13) SUBARU LEGACY IV Estate (BP) 3.0 R AWD (BPE) SUBARU OUTBACK (BH) 3.0 H6 AWD (BHE) SUBARU OUTBACK (BP) 3.0 AWD (BPE) SUBARU TRIBECA (B9) 3.0 (WXE) SUBARU TRIBECA (B9) 3.0 (WXE)

Found 79 products:

Intake Manifold Gasket

Gasket, intake manifold - 70-31414-10 VICTOR REINZ

Brand: VICTOR REINZ

Part Number: 70-31414-10

Colour: Anthracite
Temperature range from [°C]: 50
Material: Silicone

Oil Filter

Oil Filter - ADS72101 BLUE PRINT

Brand: BLUE PRINT

Part Number: ADS72101

Outer Diameter [mm]: 80
Height [mm]: 80
Filter type: Screw-on Filter

Air Filter

Air Filter - ADN12215 BLUE PRINT

Brand: BLUE PRINT

Part Number: ADN12215

Height [mm]: 34
Width [mm]: 167
Length [mm]: 280

Air Filter

Air Filter - ADS72213 BLUE PRINT

Brand: BLUE PRINT

Part Number: ADS72213

Height [mm]: 35
Width [mm]: 219
Length [mm]: 220

Air Filter

Air Filter - ADK82242 BLUE PRINT

Brand: BLUE PRINT

Part Number: ADK82242

Height [mm]: 34
Width [mm]: 168
Length [mm]: 281

Oil Sump Gasket

Seal Ring, oil drain plug - 705.050 ELRING

Brand: ELRING

Part Number: 705.050

Outer Diameter [mm]: 25.5
Thickness [mm]: 2.2
Inner Diameter [mm]: 20.3

Radial Oil Seal/Set

Shaft Seal, crankshaft - 707.340 ELRING

Brand: ELRING

Part Number: 707.340

Outer Diameter [mm]: 103
Height [mm]: 10
Inner Diameter [mm]: 86

Radial Oil Seal/Set

Shaft Seal, crankshaft - 81-53333-00 VICTOR REINZ

Brand: VICTOR REINZ

Part Number: 81-53333-00

Outer Diameter [mm]: 103
Inner Diameter [mm]: 86
Material: MVQ (Silicone Elastomer)

Oil Sump Gasket

Seal Ring, oil drain plug - 30651 FEBI BILSTEIN

Brand: FEBI BILSTEIN

Part Number: 30651

Colour: Silver
Outer Diameter [mm]: 26
Thickness [mm]: 2.2

Air Filter

Air Filter - 31154 FEBI BILSTEIN

Brand: FEBI BILSTEIN

Part Number: 31154

Height [mm]: 34
Width [mm]: 167
Length [mm]: 280

Oil Sump Gasket

Seal Ring, oil drain plug - 18001800 AJUSA

Brand: AJUSA

Part Number: 18001800

Outer Diameter [mm]: 26
Thickness [mm]: 2.5
Inner Diameter [mm]: 20

Drain Screw

Sealing Plug, oil sump - 30655 FEBI BILSTEIN

Brand: FEBI BILSTEIN

Part Number: 30655

Spanner Size: 17
Bolt Head-/Nut Design: Male Hex
External Thread [mm]: M20 x 1,5

Drain Screw

Sealing Plug, oil sump - 30660 FEBI BILSTEIN

Brand: FEBI BILSTEIN

Part Number: 30660

Spanner Size: 17
Material: Steel
Bolt Head-/Nut Design: Male Hex

Belt Tensioner (Tensioner Unit)

Belt Tensioner, V-ribbed belt - 534 0286 10 Schaeffler INA

Brand: Schaeffler INA

Part Number: 534 0286 10

Outer Diameter [mm]: 80
Width [mm]: 32
EAN: 4005108552976

Premium

Air Filter

Air Filter - FA1127 DJ PARTS

Brand: DJ PARTS

Part Number: FA1127

Height [mm]: 35.5
Width [mm]: 220
Length [mm]: 221

Cylinder Head Cover Gasket

Gasket Set, cylinder head cover - 15-11480-01 VICTOR REINZ

Brand: VICTOR REINZ

Part Number: 15-11480-01

EAN: 4026635147954

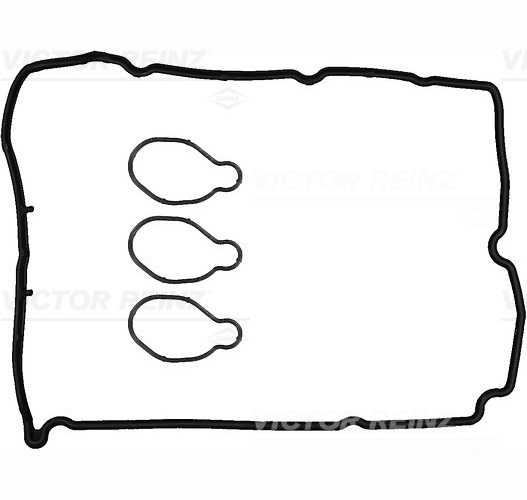

Cylinder Head Cover Gasket

Gasket Set, cylinder head cover - 15-11479-01 VICTOR REINZ

Brand: VICTOR REINZ

Part Number: 15-11479-01

EAN: 4026635147947

Intake Manifold Gasket

Gasket, intake manifold - 13243900 AJUSA

Brand: AJUSA

Part Number: 13243900

Fitting Position: Suction Pipe
EAN: 8433577069774

Categories

Engine Oil - 173443 FEBI BILSTEIN

Brand: FEBI BILSTEIN

Part Number: 173443

Specification: ACEA A5/B5/C2, API CF/SN, Fiat 9.55535-S1, Honda, PSA B71 2290, Subaru, Suzuki, Toyota
SAE viscosity class: 5W-30
Capacity [litre]: 1

Categories

Engine Oil - 101142 FEBI BILSTEIN

Brand: FEBI BILSTEIN

Part Number: 101142

Specification: ACEA A3/B4, API SN/CF, BMW Longlife-01, Ford WSS-M2C937-A, MB 229.3, MB 229.5, Porsche A40, VW 502 00, VW 502 00/505 00, VW 505 00
SAE viscosity class: 0W-40
Capacity [litre]: 5

Categories

Engine Oil - 32931 FEBI BILSTEIN

Brand: FEBI BILSTEIN

Part Number: 32931

Specification: ACEA A3/B4, API SL/CF, Fiat 8.55535-G2/D2, MB 229.1, VW 501 01, VW 501 01/505 00, VW 505 00
SAE viscosity class: 10W-40
Capacity [litre]: 1

Categories

Engine Oil - 32933 FEBI BILSTEIN

Brand: FEBI BILSTEIN

Part Number: 32933

Specification: ACEA A3/B4, API SL/CF, Fiat 8.55535-G2/D2, MB 229.1, VW 501 01, VW 501 01/505 00, VW 505 00
SAE viscosity class: 10W-40
Capacity [litre]: 5

Categories

Engine Oil - 32938 FEBI BILSTEIN

Brand: FEBI BILSTEIN

Part Number: 32938

Specification: ACEA A3/B4, API SN/CF, BMW Longlife-01, GM LL-B 025, MB 229.3, PSA B 712296, Porsche A40, Renault RN 0700, Renault RN 0710, VW 502 00, VW 502 00/505 00, VW 505 00
SAE viscosity class: 5W-40
Capacity [litre]: 5

Categories

Engine Oil - 173445 FEBI BILSTEIN

Brand: FEBI BILSTEIN

Part Number: 173445

Specification: Fiat 9.55535-S1, Honda, PSA B71 2290, Subaru, Suzuki, Toyota
SAE viscosity class: 5W-30
ACEA specification: A5/B5, C2

Categories

Engine Oil - 101150 FEBI BILSTEIN

Brand: FEBI BILSTEIN

Part Number: 101150

Specification: ACEA A1/B1, ACEA A5/B5, API SN/CF, Ford WSS-M2C913-C, Ford WSS-M2C913-D, ILSAC GF-3, ILSAC GF-4
SAE viscosity class: 5W-30
Capacity [litre]: 1
