JAC G4CS

Engine technical data
Technical data		Valve control		Timing control	Timing Belt
Manufacturer		Engine type	Straight	Compression
Engine code	G4CS	Fuel type	Petrol	Bore ^mm	86.5
Power ^kw/hp	82/112	Fuel mixture formation	Intake Manifold Injection/ Carburettor	Stroke ^mm	100
Engine volume ^cm³	2351	Charging		Crankshaft bearing
Cylinders	4	Engine block type		Cooling	water-cooled
Valves	8	Cylinder head type	SOHC/OHC

Technical data
Manufacturer
Engine code G4CS
Power ^kw/hp 82/112
Engine volume ^cm³ 2351
Cylinders 4
Valves 8
Valve control
Engine type Straight
Fuel type Petrol
Fuel mixture formation Intake Manifold Injection/ Carburettor
Charging
Engine block type
Cylinder head type SOHC/OHC
Timing control Timing Belt
Compression
Bore ^mm 86.5
Stroke ^mm 100
Crankshaft bearing
Cooling water-cooled

Found 25 products:

Cylinder Head Cover Gasket

Gasket, cylinder head cover - 036.164 ELRING

Brand: ELRING

Part Number: 036.164

0 Reviews

Colour: Grey
Temperature range from [°C]: -60
Material: Silicone

Colour: Grey
Temperature range from [°C]: -60
Material: Silicone
Available as universal article as well, see article no.: 036.164 Dirko
Capacity [ml]: 70
Temperature range to [°C]: 315
Chemical Properties: UV resistant, not solvent-bearing, Permanently elastic
Fitting Position: Cylinder Head
Packing Type: Tube
EAN: 4041248845509
hide

€6.08

incl. VAT 0% | excl. shipping costs

Oil Sump Gasket

Seal Ring, oil drain plug - 726.760 ELRING

Brand: ELRING

Part Number: 726.760

0 Reviews

Outer Diameter [mm]: 20
Thickness [mm]: 2
Inner Diameter [mm]: 14

Outer Diameter [mm]: 20
Thickness [mm]: 2
Inner Diameter [mm]: 14
Material: Aluminium
Shape: A-shape
EAN: 4041248501146
hide

€0.39

incl. VAT 0% | excl. shipping costs

Radial Oil Seal/Set

Shaft Seal, crankshaft - 293.946 ELRING

Brand: ELRING

Part Number: 293.946

0 Reviews

Outer Diameter [mm]: 50
Height [mm]: 8
Inner Diameter [mm]: 35

Outer Diameter [mm]: 50
Height [mm]: 8
Inner Diameter [mm]: 35
Material: ACM (Polyacrylate)
Radial Shaft Seal Design: A
Dust Cover: without dust lip
Swirl Type: Right-hand Twist
EAN: 4041248127346
hide

€3.03

incl. VAT 0% | excl. shipping costs

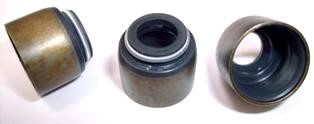

Valve Stem Seal

Seal Ring, valve stem - 010.270 ELRING

Brand: ELRING

Part Number: 010.270

0 Reviews

Valve Stem Diameter [mm]: 8
Outer Diameter [mm]: 15.5
Height [mm]: 13.1

Valve Stem Diameter [mm]: 8
Outer Diameter [mm]: 15.5
Height [mm]: 13.1
Inner Diameter [mm]: 12.8
Material: ACM (Polyacrylate)
EAN: 4041248843499
hide

€1.27

incl. VAT 0% | excl. shipping costs

Radial Oil Seal/Set

Shaft Seal, crankshaft - NJ005 PAYEN

Brand: PAYEN

Part Number: NJ005

0 Reviews

Outer Diameter [mm]: 60
Height [mm]: 7
Inner Diameter [mm]: 44

Outer Diameter [mm]: 60
Height [mm]: 7
Inner Diameter [mm]: 44
Material: NBR (nitrile butadiene rubber)
Radial Shaft Seal Design: 827S RD
Rotation Direction: Clockwise rotation
EAN: 5010874031920
hide

€1.54

incl. VAT 0% | excl. shipping costs

Radial Oil Seal/Set

Shaft Seal, crankshaft - 247.290 ELRING

Brand: ELRING

Part Number: 247.290

0 Reviews

Outer Diameter [mm]: 96
Height [mm]: 8
Inner Diameter [mm]: 80

Outer Diameter [mm]: 96
Height [mm]: 8
Inner Diameter [mm]: 80
Material: FPM (fluoride rubber)
Radial Shaft Seal Design: AS
Dust Cover: with dust lip
Swirl Type: Left-hand Twist
EAN: 4041248593233
hide

€8.10

incl. VAT 0% | excl. shipping costs

Radial Oil Seal/Set

Shaft Seal, crankshaft - 247.280 ELRING

Brand: ELRING

Part Number: 247.280

0 Reviews

Outer Diameter [mm]: 60
Height [mm]: 7
Inner Diameter [mm]: 44

Outer Diameter [mm]: 60
Height [mm]: 7
Inner Diameter [mm]: 44
Material: FPM (fluoride rubber)
Radial Shaft Seal Design: AS
Dust Cover: with dust lip
Swirl Type: Right-hand Twist
EAN: 4041248593226
hide

€7.05

incl. VAT 0% | excl. shipping costs

Radial Oil Seal/Set

Shaft Seal, crankshaft - NJ251 PAYEN

Brand: PAYEN

Part Number: NJ251

0 Reviews

Outer Diameter [mm]: 96
Height [mm]: 9
Inner Diameter [mm]: 80

Outer Diameter [mm]: 96
Height [mm]: 9
Inner Diameter [mm]: 80
Material: MVQ (Silicone Elastomer)
Radial Shaft Seal Design: 827S LD
Rotation Direction: Anticlockwise rotation
EAN: 5010874036765
hide

€4.57

incl. VAT 0% | excl. shipping costs

Valves/Parts

Outlet valve - R6249/RNT FRECCIA

Brand: FRECCIA

Part Number: R6249/RNT

0 Reviews

Valve Stem Diameter [mm]: 6.5
Material: Chrome-Mangan-Nickel Steel
Length [mm]: 109.7

Valve Stem Diameter [mm]: 6.5
Material: Chrome-Mangan-Nickel Steel
Length [mm]: 109.7
Connector type: S
Valve Head Diameter [mm]: 30.5
Supplementary Article/Info 2: Nitrided valve stem
Valve seat angle [°]: 45
EAN: 8112000015877
hide

€6.99

incl. VAT 0% | excl. shipping costs

Valve Guide/Stem Seal/Parts

Valve Guides - G2945 FRECCIA

Brand: FRECCIA

Part Number: G2945

0 Reviews

Outer Diameter [mm]: 12.06
Inner Diameter [mm]: 6.57
Material: Grey Cast Iron

Outer Diameter [mm]: 12.06
Inner Diameter [mm]: 6.57
Material: Grey Cast Iron
Length [mm]: 44
Valve type: for inlet valves
EAN: 8113000005592
hide

€1.91

incl. VAT 0% | excl. shipping costs

Valves/Parts

Inlet Valve - R6248/SNT FRECCIA

Brand: FRECCIA

Part Number: R6248/SNT

0 Reviews

Valve Stem Diameter [mm]: 6.5
Material: Chrome-silicon-steel
Length [mm]: 109.5

Valve Stem Diameter [mm]: 6.5
Material: Chrome-silicon-steel
Length [mm]: 109.5
Connector type: S
Valve Head Diameter [mm]: 34
Supplementary Article/Info 2: Nitrided valve stem
Valve seat angle [°]: 45
EAN: 8112000015860
hide

€6.75

incl. VAT 0% | excl. shipping costs

Valve Guide/Stem Seal/Parts

Valve Guides - G3585 FRECCIA

Brand: FRECCIA

Part Number: G3585

0 Reviews

Outer Diameter [mm]: 12.11
Inner Diameter [mm]: 6.6
Material: Grey Cast Iron

Outer Diameter [mm]: 12.11
Inner Diameter [mm]: 6.6
Material: Grey Cast Iron
Length [mm]: 50
Valve type: for exhaust valves
EAN: 8113000009194
hide

€2.21

incl. VAT 0% | excl. shipping costs

Valve Guide/Stem Seal/Parts

Valve Guides - G2946 FRECCIA

Brand: FRECCIA

Part Number: G2946

0 Reviews

Outer Diameter [mm]: 12.06
Inner Diameter [mm]: 6.57
Material: Grey Cast Iron

Outer Diameter [mm]: 12.06
Inner Diameter [mm]: 6.57
Material: Grey Cast Iron
Length [mm]: 50
Valve type: for exhaust valves
EAN: 8113000005608
hide

€2.03

incl. VAT 0% | excl. shipping costs

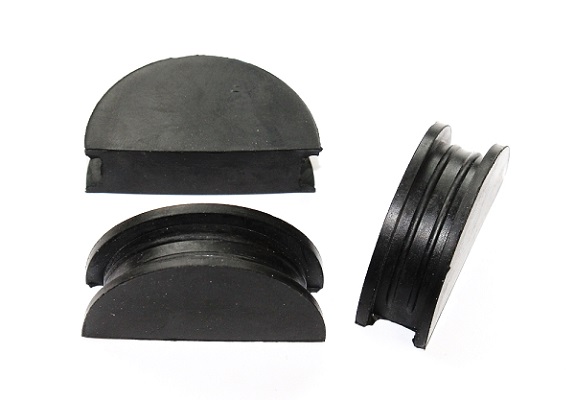

Cylinder Head Cover Gasket

Gasket, cylinder head cover - 560.707 ELRING

Brand: ELRING

Part Number: 560.707

0 Reviews

Material: Elastomer
Fitting Position: Transmission End
EAN: 4041248123768

Only 5 left in stock

€1.11

incl. VAT 0% | excl. shipping costs

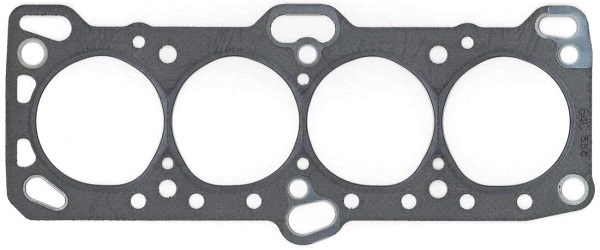

Cylinder Head Gasket

Gasket, cylinder head - 333.470 ELRING

Brand: ELRING

Part Number: 333.470

0 Reviews

Installed thickness [mm]: 1.3
Diameter [mm]: 88
Gasket Design: Fibre Composite

Installed thickness [mm]: 1.3
Diameter [mm]: 88
Gasket Design: Fibre Composite
EAN: 4041248179246
hide

Only 2 left in stock

€13.47

incl. VAT 0% | excl. shipping costs

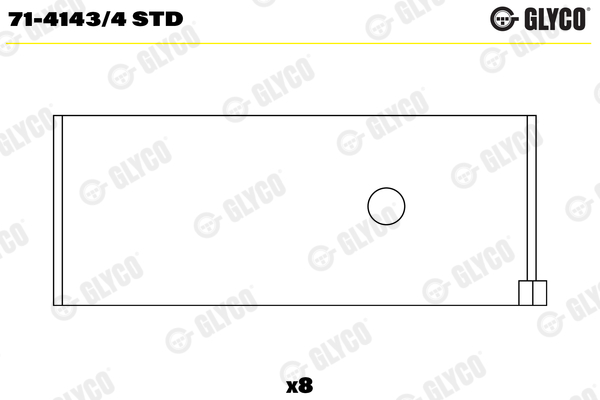

Connecting Rod Bearing Shell

Big End Bearings - 71-4143/4 STD GLYCO

Brand: GLYCO

Part Number: 71-4143/4 STD

0 Reviews

Component Number: 64-111-1
EAN: 4044197426317

Only 2 left in stock

€15.46

incl. VAT 0% | excl. shipping costs

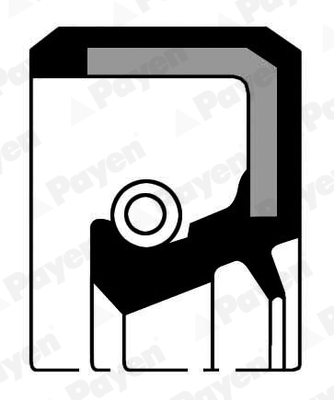

Radial Oil Seal/Set

Shaft Seal, crankshaft - NJ058 PAYEN

Brand: PAYEN

Part Number: NJ058

0 Reviews

Outer Diameter [mm]: 96
Height [mm]: 9
Inner Diameter [mm]: 80

Outer Diameter [mm]: 96
Height [mm]: 9
Inner Diameter [mm]: 80
Material: NBR (nitrile butadiene rubber)
Radial Shaft Seal Design: 827S SP
Rotation Direction: Clockwise rotation, Anticlockwise rotation
EAN: 5010874036772
hide

€4.74

incl. VAT 0% | excl. shipping costs

Valve Stem Seal

Seal Set, valve stem - 125.940 ELRING

Brand: ELRING

Part Number: 125.940

0 Reviews

EAN: 4041248151549

€8.82

incl. VAT 0% | excl. shipping costs

Categories

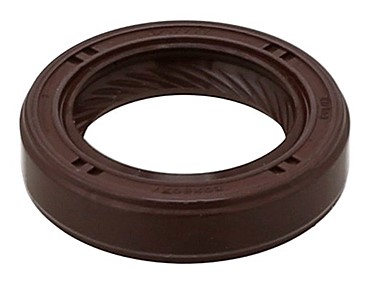

Seal Ring - 801.550 ELRING

Brand: ELRING

Part Number: 801.550

0 Reviews

Outer Diameter [mm]: 30
Height [mm]: 7
Inner Diameter [mm]: 20

Outer Diameter [mm]: 30
Height [mm]: 7
Inner Diameter [mm]: 20
Material: FPM (fluoride rubber)
Radial Shaft Seal Design: AS
Dust Cover: with dust lip
Swirl Type: Right-hand Twist
EAN: 4041248727744
hide

€2.54

incl. VAT 0% | excl. shipping costs

Cylinder Head Cover Gasket

Gasket, cylinder head cover - 332.291 ELRING

Brand: ELRING

Part Number: 332.291

0 Reviews

EAN: 4041248021743

Only 2 left in stock

€4.92

incl. VAT 0% | excl. shipping costs

Shaft Seal/Set

Shaft Seal, intermediate shaft - 247.260 ELRING

Brand: ELRING

Part Number: 247.260

0 Reviews

Outer Diameter [mm]: 35
Height [mm]: 6
Inner Diameter [mm]: 25

Outer Diameter [mm]: 35
Height [mm]: 6
Inner Diameter [mm]: 25
Material: FPM (fluoride rubber)
Radial Shaft Seal Design: AS
Dust Cover: with dust lip
Swirl Type: Right-hand Twist
EAN: 4041248593219
hide

€3.32

incl. VAT 0% | excl. shipping costs

Valves/Parts

Outlet valve - V94464 AE

Brand: AE

Part Number: V94464

0 Reviews

Valve Stem Diameter [mm]: 6.53
Material: Chrome-Mangan-Nickel Steel
Length [mm]: 109.7

Valve Stem Diameter [mm]: 6.53
Material: Chrome-Mangan-Nickel Steel
Length [mm]: 109.7
Valve Head Diameter [mm]: 30.5
Valve seat angle [°]: 45
EAN: 4044197075164
hide

Only 5 left in stock

€7.67

incl. VAT 0% | excl. shipping costs

Cylinder Head Bolts

Bolt Kit, cylinder head - 709.170 ELRING

Brand: ELRING

Part Number: 709.170

0 Reviews

Spanner Size: 8 mm
Bolt Head-/Nut Design: Female Hex
Thread Size: M 10x1,25x100

Spanner Size: 8 mm
Bolt Head-/Nut Design: Female Hex
Thread Size: M 10x1,25x100
EAN: 4041248042267
hide

Only 3 left in stock

€13.91

incl. VAT 0% | excl. shipping costs

Valves/Parts

Inlet Valve - V94463 AE

Brand: AE

Part Number: V94463

0 Reviews

Valve Stem Diameter [mm]: 6.57
Material: Chrome-silicon-steel
Length [mm]: 109.5

Valve Stem Diameter [mm]: 6.57
Material: Chrome-silicon-steel
Length [mm]: 109.5
Valve Head Diameter [mm]: 34
Supplementary Article/Info 2: Valve stem tip hardened
Valve seat angle [°]: 45
EAN: 4044197075157
hide

Only 5 left in stock

€7.93

incl. VAT 0% | excl. shipping costs

Cylinder Head Cover Gasket

Gasket, cylinder head cover - EP7400-909 FA1

Brand: FA1

Part Number: EP7400-909

0 Reviews

EAN: 5902076385799

Only 1 left in stock

€1.11

incl. VAT 0% | excl. shipping costs
