HONDA D17Z3

Engine technical data
Technical data		Valve control		Timing control
Manufacturer		Engine type	Straight	Compression
Engine code	D17Z3	Fuel type	Petrol	Bore ^mm	75
Power ^kw/hp	96/131	Fuel mixture formation	Intake Manifold Injection/ Carburettor	Stroke ^mm	94.4
Engine volume ^cm³	1668	Charging		Crankshaft bearing
Cylinders	4	Engine block type		Cooling	water-cooled
Valves	16	Cylinder head type	SOHC/OHC

Technical data
Manufacturer
Engine code D17Z3
Power ^kw/hp 96/131
Engine volume ^cm³ 1668
Cylinders 4
Valves 16
Valve control
Engine type Straight
Fuel type Petrol
Fuel mixture formation Intake Manifold Injection/ Carburettor
Charging
Engine block type
Cylinder head type SOHC/OHC
Timing control
Compression
Bore ^mm 75
Stroke ^mm 94.4
Crankshaft bearing
Cooling water-cooled

Found 22 products:

Cylinder Head Cover Gasket

Gasket, cylinder head cover - 036.164 ELRING

Brand: ELRING

Part Number: 036.164

Colour: Grey
Temperature range from [°C]: -60
Material: Silicone

Colour: Grey
Temperature range from [°C]: -60
Material: Silicone
Available as universal article as well, see article no.: 036.164 Dirko
Capacity [ml]: 70
Temperature range to [°C]: 315
Chemical Properties: UV resistant, not solvent-bearing, Permanently elastic
Fitting Position: Cylinder Head
Packing Type: Tube
EAN: 4041248845509
hide

€6.08

incl. VAT 0% | excl. shipping costs

Oil Sump Gasket

Seal Ring, oil drain plug - 243.600 ELRING

Brand: ELRING

Part Number: 243.600

Outer Diameter [mm]: 22
Thickness [mm]: 2
Inner Diameter [mm]: 14

Outer Diameter [mm]: 22
Thickness [mm]: 2
Inner Diameter [mm]: 14
Material: Aluminium
Shape: A-shape
DIN/ISO: 7603
EAN: 4067806027651
hide

€0.39

incl. VAT 0% | excl. shipping costs

Valve Stem Seal

Seal Ring, valve stem - 130.560 ELRING

Brand: ELRING

Part Number: 130.560

Colour: Green
Valve Stem Diameter [mm]: 5.5
Outer Diameter [mm]: 13

Colour: Green
Valve Stem Diameter [mm]: 5.5
Outer Diameter [mm]: 13
Height [mm]: 10
Inner Diameter [mm]: 11
Material: FPM (fluoride rubber)
EAN: 4041248111895
hide

€1.37

incl. VAT 0% | excl. shipping costs

Valve Stem Seal

Seal Ring, valve stem - 130.860 ELRING

Brand: ELRING

Part Number: 130.860

Colour: Black
Valve Stem Diameter [mm]: 5.5
Outer Diameter [mm]: 13

Colour: Black
Valve Stem Diameter [mm]: 5.5
Outer Diameter [mm]: 13
Height [mm]: 10
Inner Diameter [mm]: 11
Material: FPM (fluoride rubber)
EAN: 4041248111888
hide

€1.35

incl. VAT 0% | excl. shipping costs

Cylinder Head Cover Gasket

Gasket Set, cylinder head cover - 389.230 ELRING

Brand: ELRING

Part Number: 389.230

EAN: 4041248196113

€19.91

incl. VAT 0% | excl. shipping costs

Cylinder Head Cover Gasket

Gasket, cylinder head cover - 270.471 ELRING

Brand: ELRING

Part Number: 270.471

Alternative Repair Kit: 389.23
EAN: 4041248509128

€8.76

incl. VAT 0% | excl. shipping costs

Drain Screw

Sealing Plug, oil sump - 523.500 ELRING

Brand: ELRING

Part Number: 523.500

Spanner Size: 17 mm
Bolt Head-/Nut Design: Male Hex
Thread Size: M 14x1,5x15

Spanner Size: 17 mm
Bolt Head-/Nut Design: Male Hex
Thread Size: M 14x1,5x15
Supplementary Article/Info 2: with seal ring
EAN: 4041248668825
hide

Only 5 left in stock

€2.97

incl. VAT 0% | excl. shipping costs

Valve Stem Seal

Seal Set, valve stem - 084.300 ELRING

Brand: ELRING

Part Number: 084.300

EAN: 4041248150214

€14.17

incl. VAT 0% | excl. shipping costs

Camshaft

Shaft Seal, camshaft - 012.160 ELRING

Brand: ELRING

Part Number: 012.160

Outer Diameter [mm]: 45
Height [mm]: 8
Inner Diameter [mm]: 29

Outer Diameter [mm]: 45
Height [mm]: 8
Inner Diameter [mm]: 29
Material: MVQ (Silicone Elastomer)
Radial Shaft Seal Design: AS
Dust Cover: with dust lip
Swirl Type: Left-hand Twist
EAN: 4041248121511
hide

€3.06

incl. VAT 0% | excl. shipping costs

Timing Belt Set

Timing Belt Set - 530 0506 10 Schaeffler INA

Brand: Schaeffler INA

Part Number: 530 0506 10

Width 1 [mm]: 22
Number of Teeth 1: 104
EAN: 4005108578310

Only 5 left in stock

€81.02

incl. VAT 0% | excl. shipping costs

Premium

Exhaust Manifold Gasket/seal ring

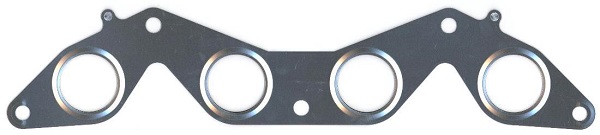

Gasket, exhaust manifold - 270.460 ELRING

Brand: ELRING

Part Number: 270.460

Fitting Position: Cylinder Head
EAN: 4041248174845

€7.80

incl. VAT 0% | excl. shipping costs

Camshaft

Shaft Seal, camshaft - NJ313 PAYEN

Brand: PAYEN

Part Number: NJ313

Outer Diameter [mm]: 45
Height [mm]: 8
Inner Diameter [mm]: 29

Outer Diameter [mm]: 45
Height [mm]: 8
Inner Diameter [mm]: 29
Material: ACM (Polyacrylate)
Radial Shaft Seal Design: 827S LD
Rotation Direction: Anticlockwise rotation
Fitting Position: Transmission End
EAN: 5010874028463
hide

€2.05

incl. VAT 0% | excl. shipping costs

Engine Electrics

Sensor, intake air temperature - 171860 FEBI BILSTEIN

Brand: FEBI BILSTEIN

Part Number: 171860

Number of connectors: 2
Weight [kg]: 0.005
EAN: 4054224718605

Only 1 left in stock

€13.25

incl. VAT 0% | excl. shipping costs

Cylinder Head Gasket

Gasket, cylinder head - 270.450 ELRING

Brand: ELRING

Part Number: 270.450

Additionally required articles (article numbers): 706.12
Diameter [mm]: 75.5
Thickness [mm]: 0.6

Additionally required articles (article numbers): 706.12
Diameter [mm]: 75.5
Thickness [mm]: 0.6
Gasket Design: Multilayer Steel (MLS)
EAN: 4041248174821
hide

€24.81

incl. VAT 0% | excl. shipping costs

Cylinder Head Bolts

Bolt Kit, cylinder head - 706.120 ELRING

Brand: ELRING

Part Number: 706.120

Spanner Size: 14 mm
Bolt Head-/Nut Design: Male Hex
Thread Size: M 10x1,25x140

Spanner Size: 14 mm
Bolt Head-/Nut Design: Male Hex
Thread Size: M 10x1,25x140
EAN: 4041248041239
hide

€27.30

incl. VAT 0% | excl. shipping costs

Drain Screw

Sealing Plug, oil sump - 523.480 ELRING

Brand: ELRING

Part Number: 523.480

Spanner Size: 17 mm
Bolt Head-/Nut Design: Male Hex
Alternative Repair Kit: 523.5

Spanner Size: 17 mm
Bolt Head-/Nut Design: Male Hex
Alternative Repair Kit: 523.5
Thread Size: M 14x1,5x15
Supplementary Article/Info 2: without seal ring
EAN: 4041248746844
hide

Only 5 left in stock

€2.67

incl. VAT 0% | excl. shipping costs

Radial Oil Seal/Set

Shaft Seal, crankshaft - 468.670 ELRING

Brand: ELRING

Part Number: 468.670

Outer Diameter [mm]: 100
Height [mm]: 10
Inner Diameter [mm]: 80

Outer Diameter [mm]: 100
Height [mm]: 10
Inner Diameter [mm]: 80
Material: FPM (fluoride rubber)
Radial Shaft Seal Design: AS
Dust Cover: with dust lip
Swirl Type: Right-hand Twist
EAN: 4041248838709
hide

€9.12

incl. VAT 0% | excl. shipping costs

Cylinder Head Cover Gasket

Gasket Set, cylinder head cover - EP7900-911Z FA1

Brand: FA1

Part Number: EP7900-911Z

EAN: 5902076386154

Only 5 left in stock

€11.44

incl. VAT 0% | excl. shipping costs

Cylinder Head Cover Gasket

Gasket, cylinder head cover - EP7900-903 FA1

Brand: FA1

Part Number: EP7900-903

EAN: 5902076386079

Only 3 left in stock

€4.91

incl. VAT 0% | excl. shipping costs

Cylinder Head Cover Gasket

Gasket, cylinder head cover - ENT013081 ENGITECH

Brand: ENGITECH

Part Number: ENT013081

Material: Elastomer
EAN: 5901655784299

€6.26

incl. VAT 0% | excl. shipping costs

Valve Stem Seal

Seal Ring, valve stem - PB355 PAYEN

Brand: PAYEN

Part Number: PB355

Outer Diameter [mm]: 11
Height [mm]: 10
Inner Diameter [mm]: 5

Outer Diameter [mm]: 11
Height [mm]: 10
Inner Diameter [mm]: 5
Fitting Position: Intake Side
EAN:
hide

€1.11

incl. VAT 0% | excl. shipping costs

Oil Filter

Oil Filter - 50013109/3 KOLBENSCHMIDT

Brand: KOLBENSCHMIDT

Part Number: 50013109/3

Outer Diameter 1 [mm]: 66
Height [mm]: 86
Inner Diameter 1 [mm]: 55

Outer Diameter 1 [mm]: 66
Height [mm]: 86
Inner Diameter 1 [mm]: 55
Filter type: Screw-on Filter
Outer Diameter 2 [mm]: 63
Thread Size: M20 x 1,5
Supplementary Article/Info 2: with one anti-return valve
Bypass Valve Opening Pressure [bar]: 1.2
EAN: 4028977669446
hide

Only 5 left in stock

€2.48

incl. VAT 0% | excl. shipping costs
