Compatible with: CITROËN (BERLINGO, BX, C-CROSSER, C15, C4, C5, C8, DS4, DS5, EVASION, GRAND, JUMPER, JUMPY, SPACETOURER, XANTIA, XM, XSARA), DS (DS), FIAT (DUCATO, SCUDO, ULYSSE), LANCIA (PHEDRA, ZETA), MITSUBISHI (OUTLANDER), OPEL (GRANDLAND, VIVARO, ZAFIRA)

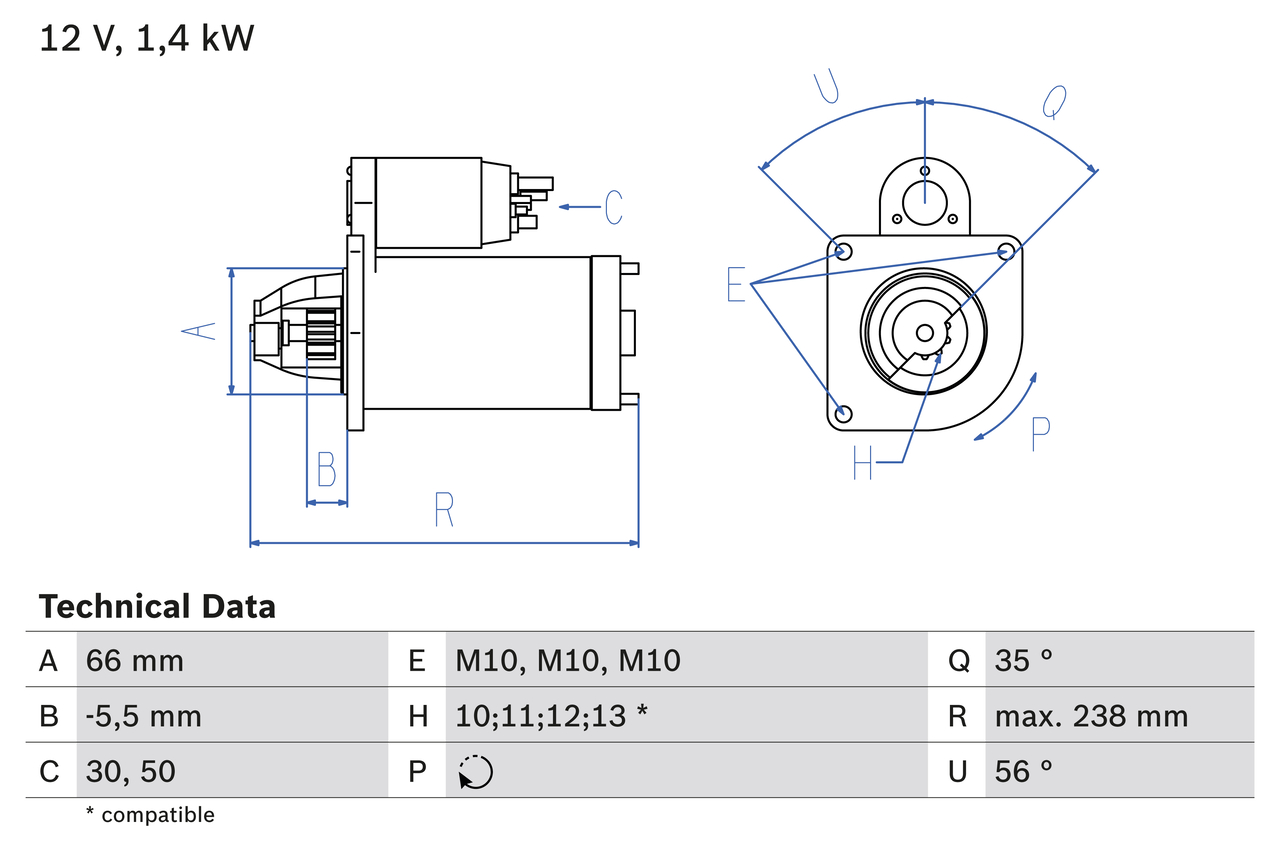

| Exchange Part | |
|---|---|
| Voltage [V] | 12 |
| Rated Power [kW] | 1,4 |
| Number of mounting bores | 0 |
| Number of threaded holes | 3 |
| Number of Teeth | 10 |
| Number of Teeth | 13 |
| Number of Teeth | 12 |
| Number of Teeth | 11 |
| Clamp | 30,50 |
| Rotation Direction | Clockwise rotation |
| Pinion Rest Position [mm] | -5,5 |
|---|---|
| Starter Type | Self-supporting |
| Thread Size | M10x1.5 |
| Thread Size 1 | M10x1.5 |
| Thread Size 2 | M10x1.5 |
| Length [mm] | 238 |
| Position/Degree | links |
| Mounting Angle [degrees] | 56 |
| Jaw opening angle measurement [Degree] | 35 |
| Mounting bore angle measurement [degree] | 56 |
|
