MORGAN N54 B30 A Engine

Engine technical data
Technical data		Valve control		Timing control	Timing Chain
Manufacturer		Engine type	Straight	Compression
Engine code	N54 B30 A	Fuel type	Petrol	Bore ^mm	84
Power ^kw/hp	200/272	Fuel mixture formation	Direct Injection	Stroke ^mm	89.6
Engine volume ^cm³	2979	Charging		Crankshaft bearing
Cylinders	6	Engine block type		Cooling	water-cooled
Valves	24	Cylinder head type	DOHC

Technical data
Manufacturer
Engine code N54 B30 A
Power ^kw/hp 200/272
Engine volume ^cm³ 2979
Cylinders 6
Valves 24
Valve control
Engine type Straight
Fuel type Petrol
Fuel mixture formation Direct Injection
Charging
Engine block type
Cylinder head type DOHC
Timing control Timing Chain
Compression
Bore ^mm 84
Stroke ^mm 89.6
Crankshaft bearing
Cooling water-cooled

Found 54 products:

Tappet/Push Rod/Push Rod Protection Tube

Tappet - 420 0195 10 Schaeffler INA

Brand: Schaeffler INA

Part Number: 420 0195 10

Operating Mode: Hydraulic
Diameter [mm]: 12
Height [mm]: 33.4

Premium

Oil Sump Gasket

Seal Ring, oil drain plug - 110.906 ELRING

Brand: ELRING

Part Number: 110.906

Outer Diameter [mm]: 17
Thickness [mm]: 1.5
Inner Diameter [mm]: 12

Radial Oil Seal/Set

Shaft Seal, crankshaft - 301.870 ELRING

Brand: ELRING

Part Number: 301.870

Outer Diameter [mm]: 110
Height [mm]: 12
Inner Diameter [mm]: 90

Pulse Generator

Flange, camshaft position sensor - 458.320 ELRING

Brand: ELRING

Part Number: 458.320

Number of mounting bores: 2
Supplementary Article/Info 2: with seal ring
EAN: 4041248736715

Oil Filter Housing/Seal

Seal, oil filter housing - 632.090 ELRING

Brand: ELRING

Part Number: 632.090

Material: FPM (fluoride rubber)
Fitting Position: Engine Side
Housing material: Cast Aluminium

Turbocharger Gasket

Seal, oil outlet (charger) - 635.432 ELRING

Brand: ELRING

Part Number: 635.432

Gasket Design: Steel
38
EAN: 4067806082698

Oil Filter Housing/Seal

Seal, oil filter housing - 504.530 ELRING

Brand: ELRING

Part Number: 504.530

Material: HNBR (hydrogenated nitrile butadiene rubber)
Fitting Position: Engine Side
Housing material: Cast Aluminium

Categories

Seal Ring - 147.670 ELRING

Brand: ELRING

Part Number: 147.670

Colour: Green
Outer Diameter [mm]: 23
Thickness [mm]: 3

Rocker Arm/Finger Follower

Finger Follower, engine timing - 422 0226 10 Schaeffler INA

Brand: Schaeffler INA

Part Number: 422 0226 10

EAN: 4005108556950

Premium

Oil Cooler

Seal, oil cooler - 596.450 ELRING

Brand: ELRING

Part Number: 596.450

Alternative Repair Kit: 306.75
EAN: 4041248688243

Oil Pressure Switch/Sensor/Valve

Seal Ring, engine oil level sensor - 301.540 ELRING

Brand: ELRING

Part Number: 301.540

Colour: Red
EAN: 4041248551899

Seal

Gasket, exhaust pipe - 737.710 ELRING

Brand: ELRING

Part Number: 737.710

Fitting Position: in front of the catalyst
EAN: 4041248611661

Oil Cooler

Seal, oil cooler - 306.750 ELRING

Brand: ELRING

Part Number: 306.750

Material: HNBR (hydrogenated nitrile butadiene rubber)
EAN: 4041248617304

Oil Sump Gasket

Gasket, oil sump - 545.840 ELRING

Brand: ELRING

Part Number: 545.840

Gasket Design: Steel Elastomer
EAN: 4041248436288

Radial Oil Seal/Set

Shaft Seal, crankshaft - 902.860 ELRING

Brand: ELRING

Part Number: 902.860

Outer Diameter [mm]: 79
Height [mm]: 10
Inner Diameter [mm]: 65

Connecting Rod Bearing Shell

Big End Bearings - 71-4807/2 STD GLYCO

Brand: GLYCO

Part Number: 71-4807/2 STD

Component Number: 71-4806, 71-4807
EAN: 4044197516407

Fuel Circuit Seals

Seal Ring, injector - 005.980 ELRING

Brand: ELRING

Part Number: 005.980

Outer Diameter [mm]: 8.1
Thickness [mm]: 2.8
Inner Diameter [mm]: 6.4

Cylinder Head Cover Gasket

Gasket, cylinder head cover - 740.210 ELRING

Brand: ELRING

Part Number: 740.210

Alternative Repair Kit: 477.53
EAN: 4041248521861

Connecting Rod Bearing Shell

Conrod Bearing Set - 77967600 KOLBENSCHMIDT

Brand: KOLBENSCHMIDT

Part Number: 77967600

Quantity: 12
Component Number: 72917600, 72918600
Quantity Unit: Kit

Premium

Valve Stem Seal

Seal Set, valve stem - 660.360 ELRING

Brand: ELRING

Part Number: 660.360

Valve Stem Diameter [mm]: 6
Material: FPM (fluoride rubber)
EAN: 4041248469323

Vacuum Pump

Gasket, vacuum pump - 178.612 ELRING

Brand: ELRING

Part Number: 178.612

EAN: 4041248987674

Tappet/Push Rod/Push Rod Protection Tube

Tappet - FOL152 AE

Brand: AE

Part Number: FOL152

Operating Mode: Hydraulic
EAN: 4044197243709

Crankshaft Main Bearings

Crankshaft Bearing Set - 77947600 KOLBENSCHMIDT

Brand: KOLBENSCHMIDT

Part Number: 77947600

Quantity: 14
Component Number: 72143600, 72146600, 72147600, 72148600, 72149600
Quantity Unit: Kit

Premium

Valve Guide/Stem Seal/Parts

Valve Guides - VAG96403B AE

Brand: AE

Part Number: VAG96403B

Outer Diameter [mm]: 10.04
Inner Diameter [mm]: 6
Material: Bronze

Charger/-parts

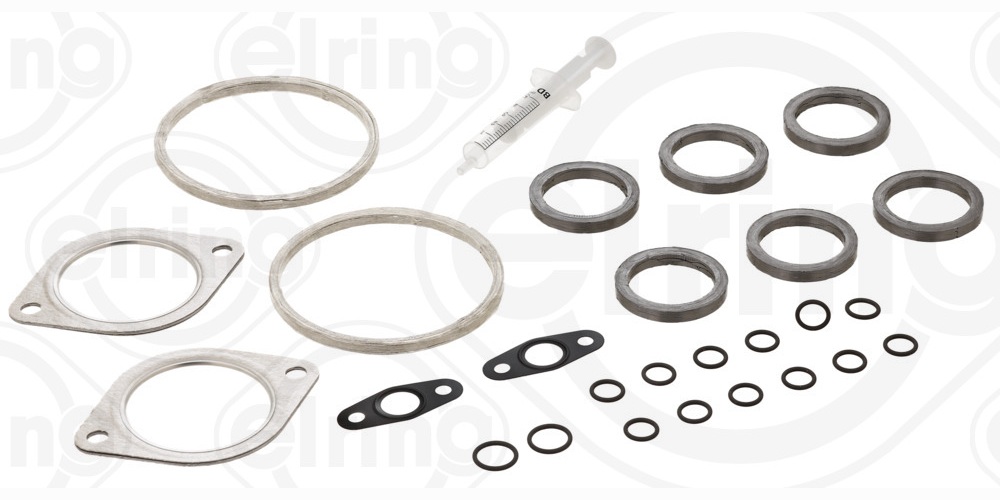

Mounting Kit, charger - 298.900 ELRING

Brand: ELRING

Part Number: 298.900

Supplementary Article/Supplementary Info: with gaskets/seals
For OE number: 11 65 7 563 685, 11 65 7 563 686, 11 65 7 563 704, 11 65 7 563 712, 11 65 7 563 714, 11 65 7 593 015, 11 65 7 593 016, 11 65 7 593 021, 11 65 7 593 022, 11 65 7 593 023, 11 65 7 649 289, 11 65 7 649 291, 11 65 7 649 294, 11 65 7 649 295, 11 65 7 649 296, 11 65 7 649 297, 49131-07005, 49131-07008, 49131-07009, 49131-07030, 49131-07040, 49131-07041, 49131-07235, 49131-07236, 49131-07237, 49131-07238, 49131-07239, 49131-07255, 49131-07256, 49131-07257, 49131-07258, 49131-07259, 49131-07290, 49131-07291, 49131-07292, 49131-07293, 49131-07294, 49131-07305, 49131-07306, 49131-07307, 49131-07308, 49131-07309, 49131-07325, 49131-07326, 49131-07327, 49131-07328, 49131-07329
Supplementary Article/Info 2: with mounting manual
